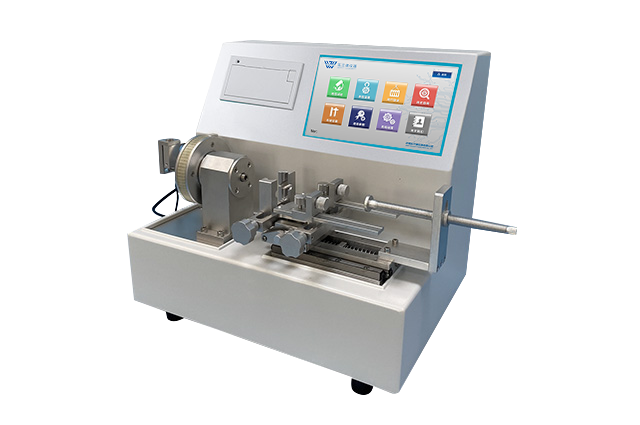

Luer fittings performance tester

Luer cone joint comprehensive tester is mainly used to determine the physical characteristics of cone Luer joints, is one of the important means to identify medical equipment Luer cone head. Comply with the requirements of ISO 80369

1, by the programmable controller, touch screen, force value sensor, transmission device, on-board printer, etc., providing Chinese and English menu display, with man-machine dialogue to set the parameters of automatic operation test mode,

2, another additional production unit, production batch machine typing input, so that the test results more standardized standardization.

3, information security using three-level password, so that information security is reliable.

4, test control range includes: test items, nominal specifications, product name, print settings, test, upstream, downstream, time, calibration, calibration and other functional settings.

5, with the on-board printing test can display test data in real time, automatic judgment for the test results, failure to start the automatic beep alarm, and the printer to print out the test data and results for analysis.

6, display the axial force, torque, holding time, internal water pressure applied to the assembly during the test, and can test the performance of the luer joint for liquid leakage, air leakage, separation force, spin-off torque, easy assembly, anti-slip wire, stress cracking, pressure decay leakage, positive pressure liquid leakage, negative pressure air leakage, etc., and display the axial force, torque, holding time, internal water pressure, separation force applied to the assembly during the test The test also shows the axial force, torque, retention time, internal water pressure, separation force, leakage rate values, including various 6:100 (luer) fittings, (locking and non-locking), such as infusion sets, blood transfusion sets, infusion needles, catheters, anesthesia filters, etc.
