Particle Filtration Efficiency Tester
Wldtest instruments, 10 years of R & D and production experience in pharmaceutical and medical instruments. GL-1000 is the latest generation of automatic particle filtration efficiency tester of Wldtest instruments，0-99.999% filtration efficiency meets the test requirements of all kinds of masks and melted fabrics. It uses six channels of the laser particle counter. Sampling frequency up to 999 times/min, 10-100l / min flow regulation, 0-1000pa differential pressure sensor, can meet various standard test requirements. Ultra high precision laser particle counter, flowmeter imported from the United States, high precision differential pressure sensor, 10 Inch Touch screen operation, aerosol generator, static charge neutralization device, and other functions make GL-1000 an expert level particle filter efficiency tester. It is applicable to the test of filtration efficiency, ventilation resistance, pressure difference, and other performance of samples such as melt blown cloth, medical protective mask, medical-surgical mask, respiratory protective articles, and disposable protective clothing. GL-1000 adopts a new touch screen operating system, advanced multi-level user management authority, and comes with a micro printer to print test results at any time. The additional software can realize the functions of real-time display of test curves, data statistics, inspection result viewing, data audit tracking, etc., making the operation more efficient and convenient. The instrument can be upgraded and maintained remotely, which greatly improves the convenience of after-sales service. The instrument meets the requirements of many standards such as GB 32610-2016, GB 2626-2006, GB 19082-2009, GB 19083-2010, YY 0469-2011, etc. The GL-1000 is easy to operate. The user only needs to place the sample horizontally between the upper and lower cavities to complete the simple setting of test parameters. Click the test key, and the GL-1000 can complete the test of the sample. Gl-1000 high-precision, multi-functional, large range automatic particle filter efficiency tester is the first choice. Wldtest instruments - believe in the power of the brand.
- WLDTEST
- China
- 10 working days
- 100 sets / month
- Information
- Video
- Download

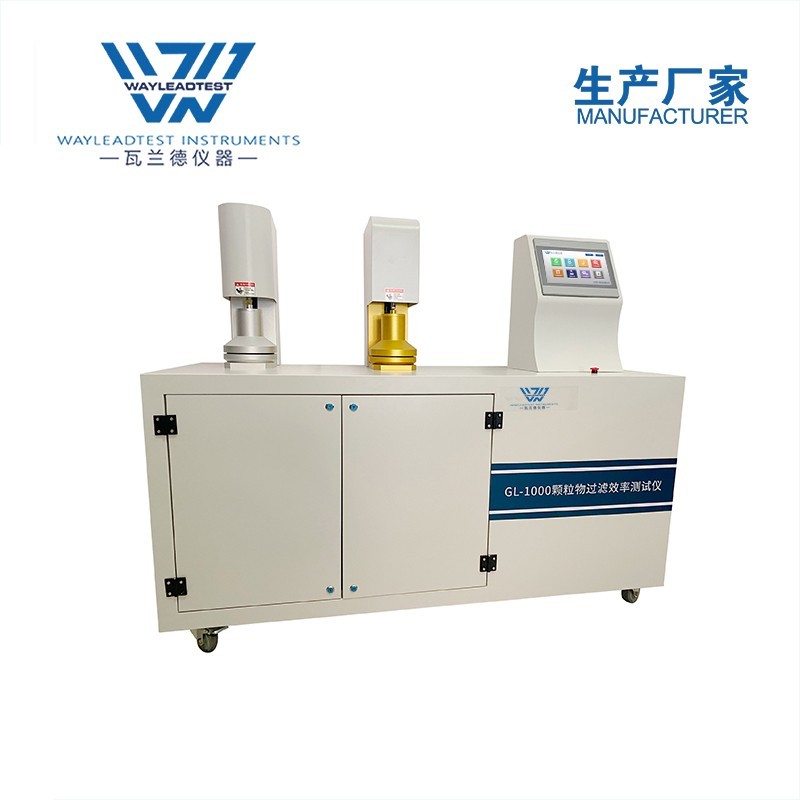

GL-1000 Mask particle filtration efficiency tester
Product overview
Particle filtration efficiency tester is used to test the filtration performance, filtration efficiency and filtration effect of the mask. At present, the mask is mainly divided into air filtration mask and air supply mask. This testing instrument is applicable to medical equipment testing center, safety protection testing center, labor protection testing center, drug testing center, disease prevention and control center, textile testing center, hospital, mask and respirator manufacturing enterprises, etc. It meets the technical requirements of GB 2626-2006 respiratory protective equipment - self suction filtration type particle respirator, GB 19083-2010 medical protective mask, and GB / T 32610-2016 daily protective mask.
Equipment composition and principle
The instrument is composed of Salt spray generator (Nacl), Oil mist generator (DOP), data acquisition software, testing product tooling device, concentration detector, filtered concentration detector, computer data calculation device, pressure regulating device and tooling pipeline testing auxiliary device.
It is implemented by the photometer in the system to detect the concentration of mask before and after filtration, so as to detect the protective efficiency of mask particles.
Technical features
1. With 7-inch high-definition LCD touch screen, the content is more intuitive and the operation is more simple.
2. It is equipped with a special salt spray generator or oil mist generator (or both), which can generate aerosols of specific particle size and concentration；
3. Equipped with a series of special clamps, suitable for the detection of various masks.
4. Built in high life sensor module, sampling time accumulation.
5. Automatic control of aerosol generation, automatic calculation of capture efficiency, and reduction of human intervention.
6. Built in high-precision electronic flowmeter and high-performance sampling pump to ensure flow stability.
7. With automatic pneumatic clamping function.
8. Equipped with electrostatic eliminator.
9. Three levels of authority of GMP users.
10. Single and group statistical analysis of test results can be carried out.
11. With ISP online control and upgrade function, the test function can be changed remotely as required.
12. The special computer communication software can carry out the real-time display of the test, the analysis and processing of the data, and the data storage.
Technical parameters
Model Item | GL-1000 Mask particle filtration efficiency tester |
Detection range of over rate efficiency | 0-99.999% |
Accuracy | Grade 1 |
Flow meter range of filtration rate efficiency detection | 0-100L/min |
Flowmeter accuracy | Grade 1.5 |
Sampling frequency | 1-9999 times/min |
Count median diameter | Salt particles (0.075 ± 0.02) μm Oil particles (0.185±0.02) μm |
Geometric standard deviation of particle size distribution | salt particles ≤ 1.86 ; oil particles ≤ 1.60 . |
Power supply | 220VAC 50Hz |
Net weight | 70kg |
Instrument configuration
Mainframe, Professional software, Salt spray generator (Nacl), Oil mist generator (DOP) , Flowmeter
