Torque testing equipment
Bottle torque meter is suitable for testing the torque value of bottle cap locking, opening and tightening of aluminum-plastic combination rolling cap, medicinal plastic bottles, beverage bottles, mineral water bottles, milk bottles, edible oil bucket and other packaging products. It is widely used in bottle cap production, quality inspection center, food, medicine, cosmetics and other industries.
- WLD
- CHINA
- 1-7DAYS
- 100
- Information

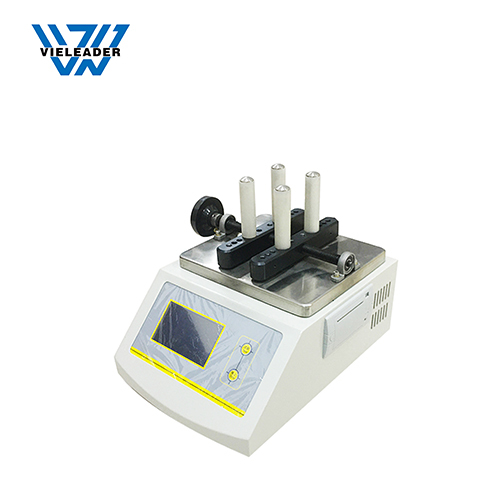

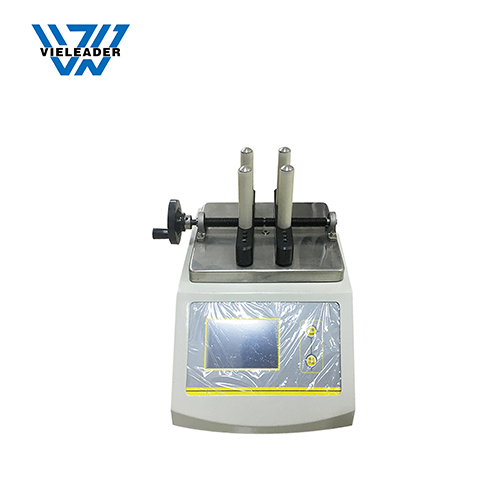

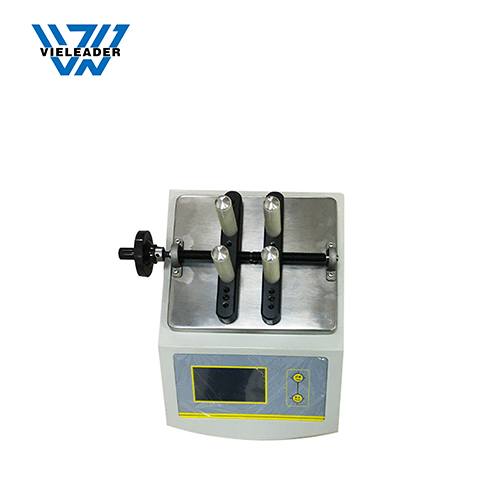

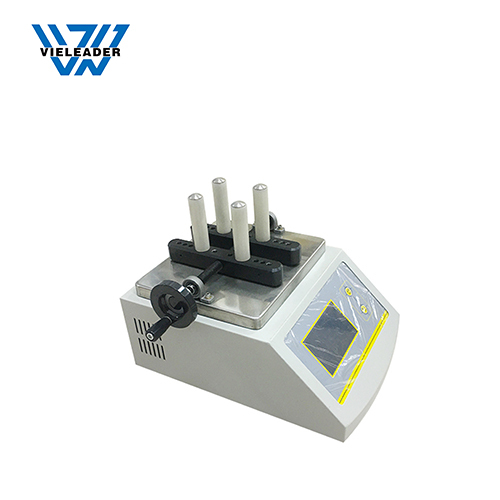

Torque testing equipment
Bottle torque meter is suitable for testing the torque value of bottle cap locking, opening and tightening of aluminum-plastic combination rolling cap, medicinal plastic bottles, beverage bottles, mineral water bottles, milk bottles, edible oil bucket and other packaging products. It is widely used in bottle cap production, quality inspection center, food, medicine, cosmetics and other industries.
1. Embedded system, remote maintenance, upgrade.
2. TFT true color LCD display test data, test process curve.
3. Peak keep, follow test, prevalue test clockwise, counterclockwise two-way test.
4. Multiple units of torque are shown.
5. Micro printer can output single, statistical reports.
6. Patent technology, touch screen flat operation, intuitive operation is simple.
7. Multiple overload protection.
8. Energy-saving design, ultra-low power consumption.
9. Configure the standard communication interface.
Specification
Test the range | 0~20Nm,40Nm,50Nm |
Test accuracy Level | 0.3%FS |
Resolution | 0.001 Nm |
Holding range | 2mm~180mm |
Size | 280*340*238mm |
Weight | 20kg |
