Leakage and seal strength tester
* Positive pressure design principle, simple operation, stable and reliable performance.
* The test range is optional, the test range is wide and the application field is wide.
* Double test method of expansion inhibition and expansion non inhibition.
* A variety of test modes for fracture test, creep test and creep to fracture test.
- WLD
- Jinan
- anytime
- 50 set/week
- Information

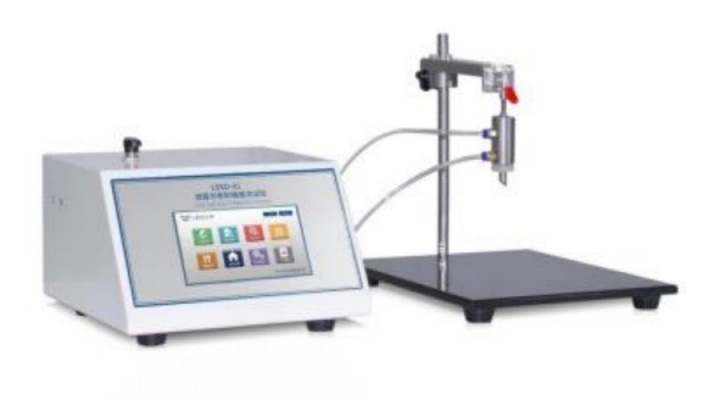

LSSD-01 Leakage and seal strength tester
LSSD-01 The leakage and sealing strength tester is suitable for the quantitative measurement of sealing strength, heat sealing quality, bursting pressure of the whole bag and sealing leakage performance of soft package and aseptic package formed by various heat sealing and bonding processes, as well as the quantitative measurement of sealing performance of various plastic anti-theft bottle caps, as well as the overall sealing performance, pressure resistance strength, cap body connection strength and shedding strength of various flexible pipes The quantitative determination of heat sealing strength and binding strength.
Professional technology
l GB, ASTM, ISO Multiple standards compatibility.
l Positive pressure design principle, simple operation, stable and reliable performance.
l The test range is optional, the test range is wide and the application field is wide.
l Double test method of expansion inhibition and expansion non inhibition.
l A variety of test modes for fracture test, creep test and creep to fracture test.
l The "one key" operation in the test process is intelligent and efficient.
l Test data high-definition large screen liquid crystal display, results automatic statistics, printing.
l Test accessories support, flexible test mode, compatibility and diversification.
l Standard USB interface configuration, computer software support, results of multiple units display.
l The test data can be shared between LAN and Internet.
Rich application

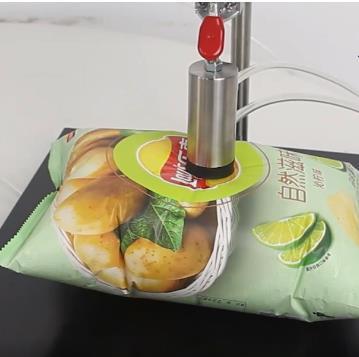

Plastic composite bag | It is suitable for pressure rupture test of various plastic film, aluminum film, paper plastic composite, aluminum plastic composite and other packaging bags |
Flexible pipe test | All kinds of washing and chemical products packaging hose and other fields of goods packaging hose. The hose can include toothpaste tube, facial cleanser, cosmetics, various medicinal ointment tubes, food packaging hose and so on |
Creep test | It is suitable for creep test of various packing bags and boxes |
Creep to rupture | It is suitable for testing creep to rupture of various packing bags and boxes |
Testing principle
LSSD-01 The leak sealing instrument adopts the principle of positive pressure method: after the gas with certain pressure is filled into the sample by setting parameters, the pressure sensor detects the change of air pressure inside the sample to judge the overall sealing performance of the sample, and tests the pressure resistance and bursting performance of the sample with the specified air pressure.
The instrument meets many national and international standards：GB 10440、GB 18454、GB 19741、GB 17447、ASTM F1140、ASTM F2054、ISO 11607-1、ISO 11607-2、GB/T 17876、GB/T 10004、GB/T 10005、 BB/T 0003、BB/T 0025、QB/T 1871、YBB 00252005、YBB 00162002.
Technical index
Model Item | LSSD-01 Leakage and seal strength tester |
Test range | 0 ～ 600 KPa; 0 ～ 87.0 psi（Standard configuration） |
0 ～ 1.6 MPa; 0 ～ 232.1 psi（Purchasing additional） | |
Inflatable head | Φ10 mm （Standard configuration） |
Φ4 mm、Φ1.6 mm （Purchasing additional） | |
Air source pressure | 0.4 MPa ～ 0.9 MPa（Gas source provided by users） |
Air source interface | Φ8 mm Polyurethane pipe |
Size | 300 mm (L) × 310 mm (W) × 180 mm (H) |
Test stand size | 305 mm (L) × 356 mm (W) × 325 mm (H) |
Power supply | AC 220V 50Hz |
Net weight | 23 kg |
